Linux Stealth Rootkit Process Decloaking Tool – sandfly-processdecloak

We have released a new tool called sandfly-processdecloak designed to decloak hidden processes from two common and easily deployed Linux Loadable Kernel Module (LKM) stealth rootkits: Diamorphine and Reptile.

You can download the tool from GitHub:

sandfly-processdecloak

This tool was released as a response to the disclosure by the FBI and NSA of a new piece of cloaked Linux malware called “Drovorub” that uses stealth tactics as a kernel module to hide. You can read about here:

Drovorub Technical Report

We do not have a copy of Drovorub to test detection yet, but we will be adding more capabilities to sandfly-processdecloak to decloak other LKM rootkit variants. As LKM rootktis are based on common hiding tactics, the currently released tool will work against a variety of rootkits deploying similar hiding techniques.  When we get a copy of Drovorub we’ll be sure to add updates to decloak it as well if not seen already.

What is sandfly-processdecloak?

sandfly-processdecloak is a utility to quickly scan for Linux Process IDs (PIDs) that are hidden by common and not-so-common loadable kernel module stealth rootkits and decloak them so they are visible.

How Does it Work?

The tool leverages a Process ID (PID) bruteforce tactic to find processes that are not showing themselves in the standard /proc directory listing on Linux. LKM rootkits often hide entries in /proc because processes not visible in /proc will not be visible with standard system tools like psnetstat, and so on.

sandfly-processdecloak will analyze the entire valid Linux PID space to check that each running PID in fact is visible as it should be. Processes that are trying to hide are revealed with their PID and process name they are currently using. See examples below.

Features

  • Written in Golang and is portable across multiple architectures with no modifications.
  • Standalone binary requires no dependencies and can be used instantly without loading any libraries.
  • Not affected by LD_PRELOAD style rootkits or tampered shared libraries on suspect hosts.
  • Works against LKM rootkits such as Diamorphine, Reptile and variants.
  • Very lightweight and will not hook into the kernel or cause system instability.

How Do I Use It?

Simply build and run sandfly-processdecloak for your preferred Linux platform using the built in scripts. Copy the binary onto your hosts you want to check and run it. Hidden PIDs will be shown if found.

Examples

When run, the program will show all clean or PIDs that are suspicious. Below we show the Reptile rootkit hiding the built-in backdoor reptile_shell, a test process called reptile_hidden and a socat program being run as another backdoor.

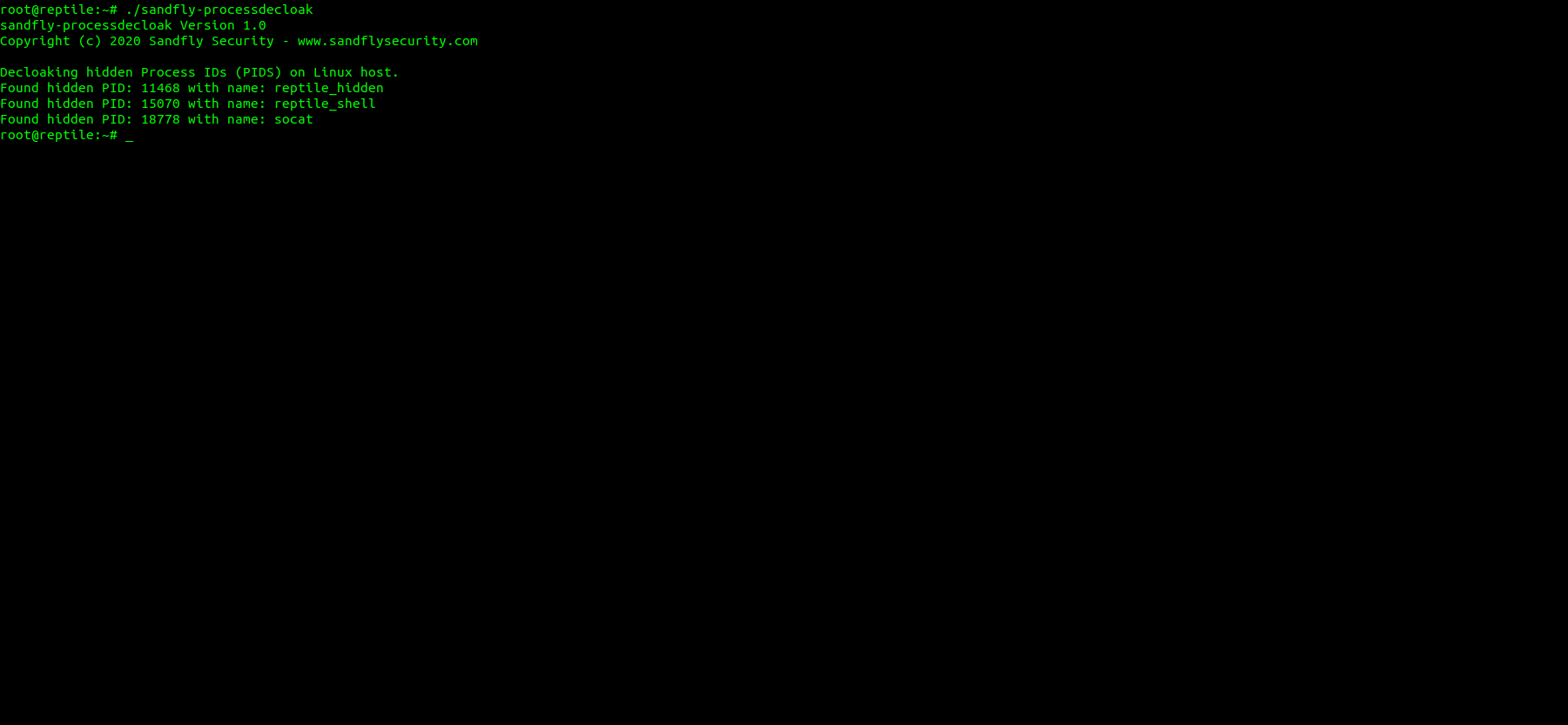

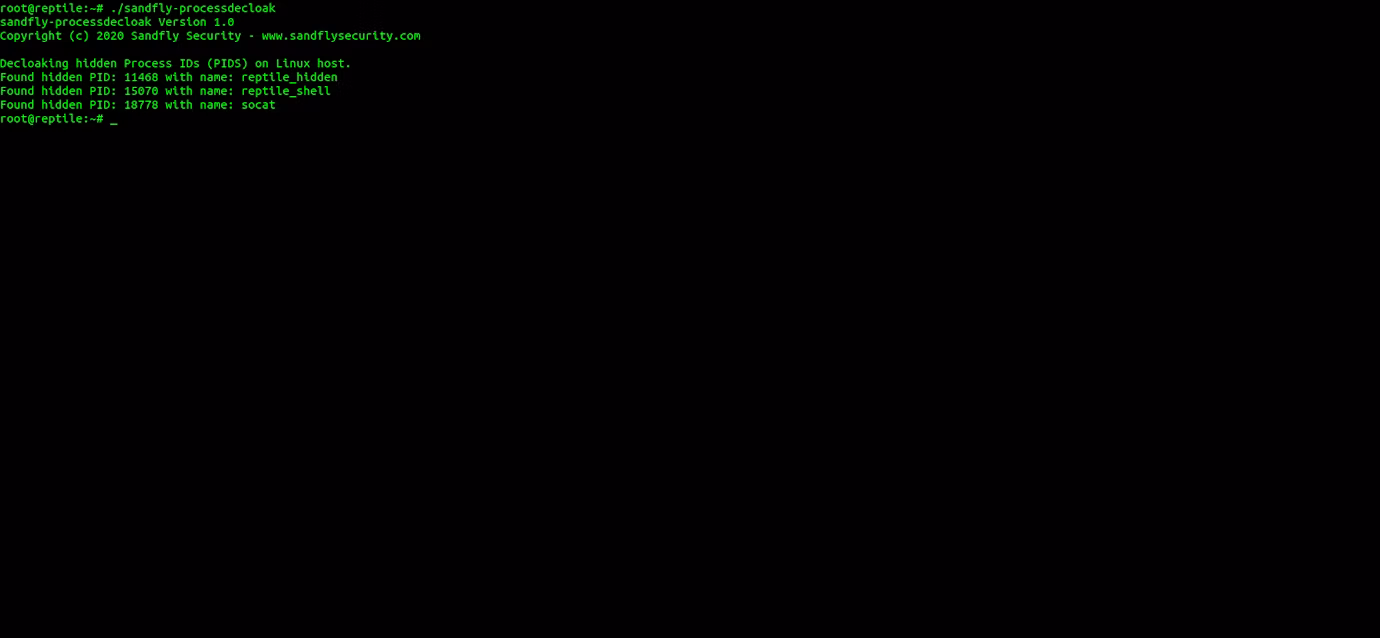

Reptile Stealth Rootkit Processes Decloaked

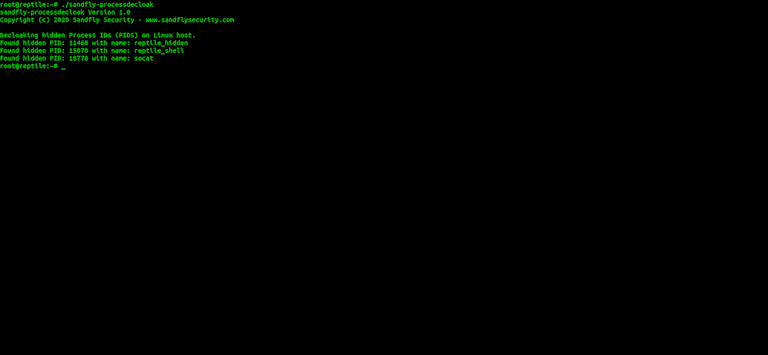

Reptile Stealth Rootkit Processes Decloaked

Example Clean System

[email protected]:~# ./sandfly-processdecloak
sandfly-processdecloak Version 1.0
Copyright (c) 2020 Sandfly Security - www.sandflysecurity.com

Decloaking hidden Process IDs (PIDS) on Linux host.
No hidden PIDs found.

Example Reptile Style LKM Stealth Rootkit

[email protected]:~# ./sandfly-processdecloak
sandfly-processdecloak Version 1.0

Copyright (c) 2020 Sandfly Security - www.sandflysecurity.com

Decloaking hidden Process IDs (PIDS) on Linux host.
Found hidden PID: 11468 with name: reptile_hidden
Found hidden PID: 15070 with name: reptile_shell

Example Diamorphine Style LKM Stealth Rootkit

[email protected]:~# ./sandfly-processdecloak
sandfly-processdecloak Version 1.0

Copyright (c) 2020 Sandfly Security - www.sandflysecurity.com

Decloaking hidden Process IDs (PIDS) on Linux host.
Found hidden PID: 7171 with name: diamorphine_hid

False Positives

It’s possible to flag a legitimate PID that is not actually cloaked but we’ve taken measures to limit this risk. At Sandfly we hate false positives and do everything we can to reduce or eliminate them to not waste your time. Please report false positives to us if you find them.

Sandfly Customers Already Protected Against LKM Rootkit Tactics

Sandfly uses a variety of methods to detect and decloak LKM style rootkits in more extensive ways than this free tool does. Not only can Sandfly decloak hidden PIDs, but we also can detect cloaked data in files, cloaked directories and more. Because we are an agentless product, we are able to get onto a large number of Linux hosts to investigate them for LKM rootkits without any system impacts or risks to system stability. Simply point Sandfly at the hosts you want investigated and we’ll do the rest in seconds.

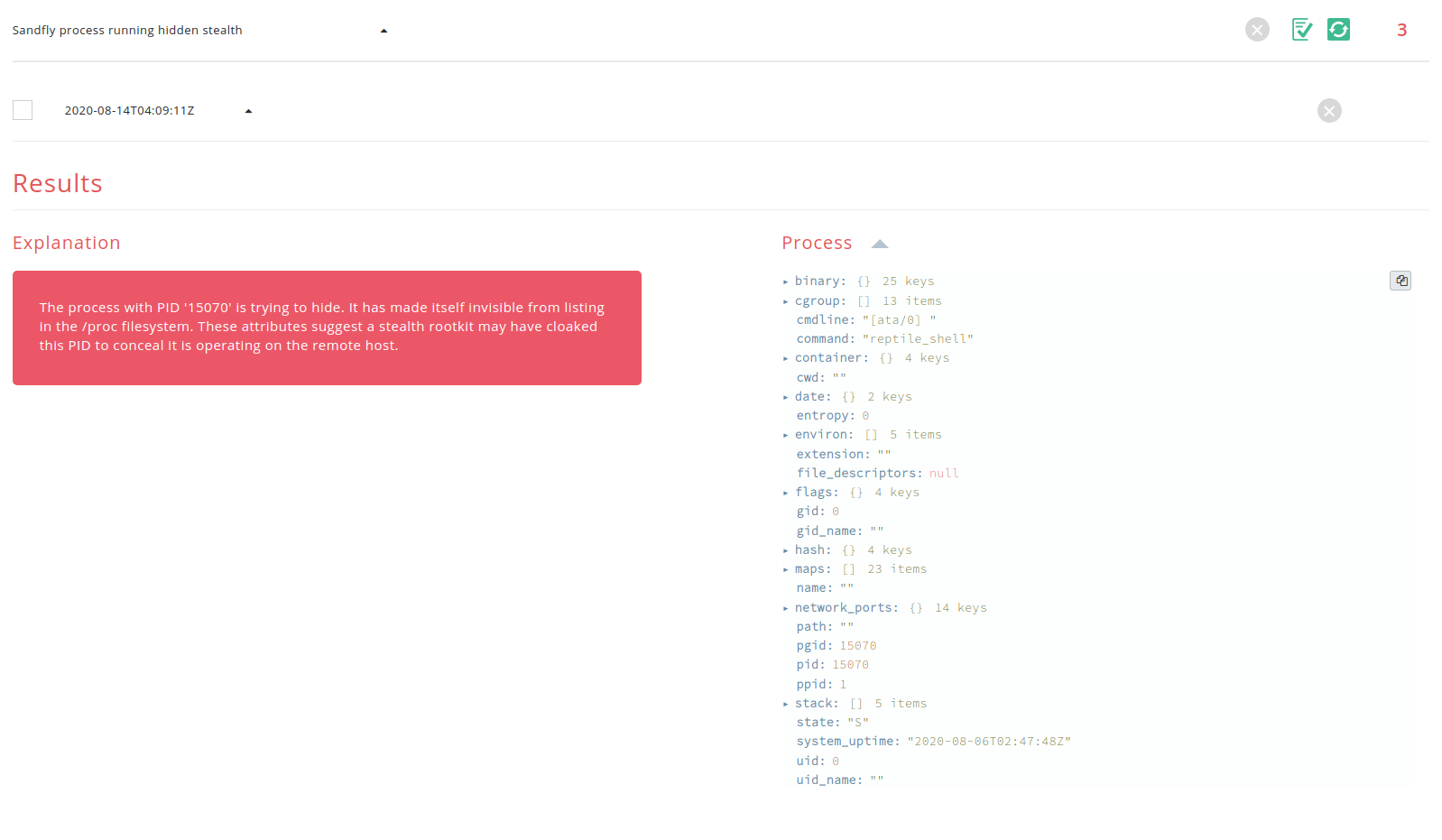

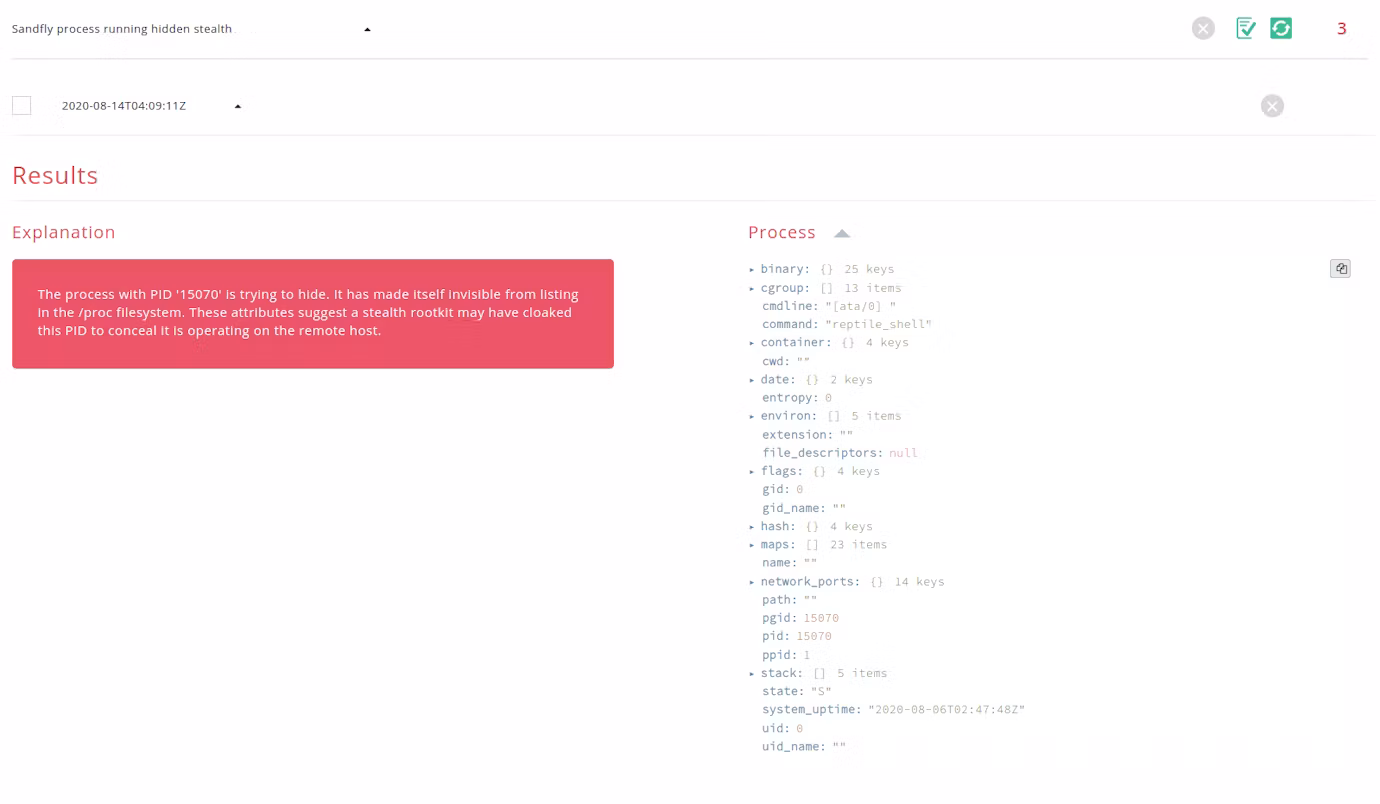

Reptile Rootkit Backdoor Decloaked
Reptile Rootkit Backdoor Decloaked

We do further checks in critical system areas for files loading kernel modules but are hiding this data from view.

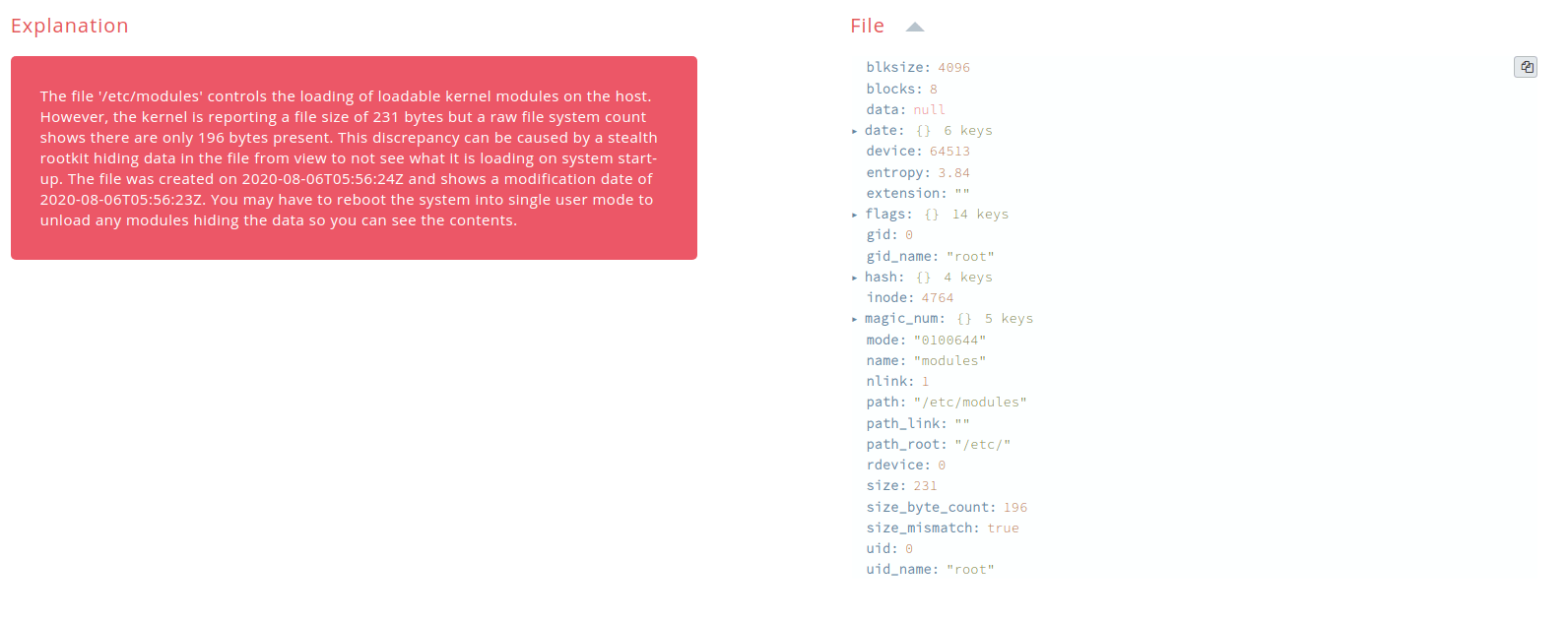

Kernel Module Loading Mismatch
Kernel Module Loading Mismatch

Contact us if you’d like to see a demo of Sandfly and get a free trial.
